We usually continually offer you the most conscientious consumer services, along with the widest variety of designs and styles with finest materials. These initiatives include the availability of customized designs with speed and dispatch for Super Lowest Price China Popular Coil Welded Coil Stainless Steel Elbow Coiled Tube, Welcome to develop the perfectly and long standing enterprise relationships with our business to make a superb potential with each other. customers’ satisfaction is our eternal pursuit!
We usually continually offer you the most conscientious consumer services, along with the widest variety of designs and styles with finest materials. These initiatives include the availability of customized designs with speed and dispatch for China Coiled Tubing, Seamless Steel Pipe, because of our company has been persisting in the management idea of “Survival by Quality, Development by Service, Benefit by Reputation” . We fully realize the good credit standing, the high quality goods, the reasonable price and the skilled services are the reason that the customers choose us to be their long-term business partner.
About specification for 304 stainless steel material :

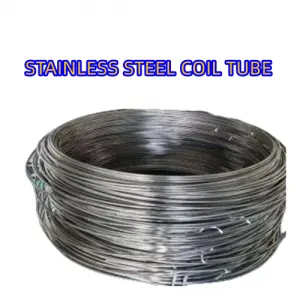

stainless steel coil tube
stainless steel tube coil
stainless steel coil tubing
stainless steel coil pipe
stainless steel coil tube suppliers
stainless steel coil tube manufacturers
stainless steel pipe coil

Introduction

Grade 304 is the standard “18/8″ stainless; it is the most versatile and most widely used stainless steel, available in a wider range of products, forms and finishes than any other. It has excellent forming and welding characteristics. The balanced austenitic structure of Grade 304 enables it to be severely deep drawn without intermediate annealing, which has made this grade dominant in the manufacture of drawn stainless parts such as sinks, hollow-ware and saucepans. For these applications it is common to use special “304DDQ” (Deep Drawing Quality) variants. Grade 304 is readily brake or roll formed into a variety of components for applications in the industrial, architectural, and transportation fields. Grade 304 also has outstanding welding characteristics. Post-weld annealing is not required when welding thin sections.

Grade 304L, the low carbon version of 304, does not require post-weld annealing and so is extensively used in heavy gauge components (over about 6mm). Grade 304H with its higher carbon content finds application at elevated temperatures. The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.

Key Properties

These properties are specified for flat rolled product (plate, sheet and coil) in ASTM A240/A240M. Similar but not necessarily identical properties are specified for other products such as pipe and bar in their respective specifications.

Composition

Typical compositional ranges for grade 304 stainless steels are given in table 1.

Table 1. Composition ranges for 304 grade stainless steel

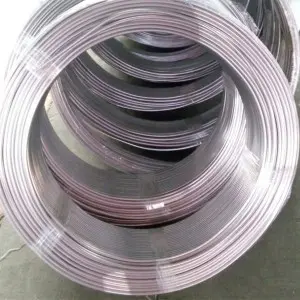

★Stainless steel coiled tubes coiled tubing specification

1. Standards: ASTM A269/A249 standard
2. Grade: TP304, TP316L 304 316 310S 2205  825 625
3. Trade Name : SS304 Coiled Tubes, SS316 Coiled Tubes, Duplex Coiled Tubes, Monel 400 Coiled Tubes, Hastelloy Coiled Tubes, Inconel coiled Tubes, 904L Coiled Tubes, Seamless Coiled Tubes, Welded Coiled Tubing
4. Out diameter:6.52-19.05mm
5. Think:0.2-2MM
6. Tolerance: OD± 0.1mm, wall thickness: ±10%, length: ±5mm
7. 6.Length:300-3500M/coil
8. packaging:iron pallet ,wooden pallet ,poly bag
9. application : refrigeration equipment, evaporator, gas liquid delivery, condenser, beverage machine
10. 4.  state:soft / half hard / soft bright annealing
11. 5. Specifications : outer diameter 6.52mm-20mm, wall thickness: 0.40mm-1.5mm
12. Tolerance range: diameter: + 0.1mm, wall thickness: + 10%, length: -0/+6mm
13. Length:800-3500M or  according to customer requirements.
14. Product advantages: surface polishing and fine, uniform wall thickness, tolerance precision etc..
15. Commonly Size of stainless steel coiled tube: we can product them as your request.

Table 1. Composition ranges for 304 grade stainless steel

Mechanical Properties and composition

▼Stainless steel coiled tubes/coil tubing common size range

▼Our advantages:

We are a stainless steel coiled tube/pipe manufacturer.

We can control the quality of pipe by ourselves.

The length of the pipes  is more than 3500M/Coil.

▼Description:

Our company has three production line of stainless steel coiled tube ,stainless steel pipe ,we have exporting experience for more than ten years ,the bending, stretching, saw cutting, stamping, polishing and so on a series of processing equipment , our stainless steel product widely used in bathroom pendant, hanger accessories, hardware, and condensation water heating equipment, hotel supplies and so on. our company sincerely hope that domestic and foreign customers to provide drawings or samples.

▼Widest range of Stainless Steel 304 Seamless, Welded Pipes & Tubes in shandong China.
