ASTM A269 alloy 310s stainless steel coil tubing suppliers
Specification:
alloy 310s stainless steel :
Introduction
Stainless steels are known as high-alloy steels. They are classified into ferritic, austenitic, and martensitic steels based on their crystalline structure.
Grade 310S stainless steel is superior than 304 or 309 stainless steel in most environments, because it has high nickel and chromium content. It has high corrosion resistance and strength in temperatures up to 1149°C (2100°F). The following datasheet gives more details about grade 310S stainless steel.
★Stainless steel coiled tubes coiled tubing specification
- Standards: ASTM A269/A249 standard
- Grade: TP304, TP316L 304 316 310S 2205 825 625
- Trade Name : SS304 Coiled Tubes, SS316 Coiled Tubes, Duplex Coiled Tubes, Monel 400 Coiled Tubes, Hastelloy Coiled Tubes, Inconel coiled Tubes, 904L Coiled Tubes, Seamless Coiled Tubes, Welded Coiled Tubing
- Out diameter:6.52-19.05mm
- Think:0.2-2MM
- Tolerance: OD± 0.1mm, wall thickness: ±10%, length: ±5mm
- 6.Length:300-3500M/coil
- packaging:iron pallet ,wooden pallet ,poly bag
- application : refrigeration equipment, evaporator, gas liquid delivery, condenser, beverage machine
- 4. state:soft / half hard / soft bright annealing
- 5. Specifications : outer diameter 6.52mm-20mm, wall thickness: 0.40mm-1.5mm
- Tolerance range: diameter: + 0.1mm, wall thickness: + 10%, length: -0/+6mm
- Length:800-3500M or according to customer requirements.
- Product advantages: surface polishing and fine, uniform wall thickness, tolerance precision etc..
- Commonly Size of stainless steel coiled tube: we can product them as your request.
▼Stainless steel 310 coiled tubes /coiled tubing Chemical Composition and composition
The following table shows the chemical composition of grade 310S stainless steel.
|
Element |
Content (%) |
|
Iron, Fe |
54 |
|
Chromium, Cr |
24-26 |
|
Nickel, Ni |
19-22 |
|
Manganese, Mn |
2 |
|
Silicon, Si |
1.50 |
|
Carbon, C |
0.080 |
|
Phosphorous, P |
0.045 |
|
Sulfur, S |
0.030 |
Physical Properties
The physical properties of grade 310S stainless steel are displayed in the following table.
|
Properties |
Metric |
Imperial |
|
Density |
8 g/cm3 |
0.289 lb/in³ |
|
Melting point |
1455°C |
2650°F |
Mechanical Properties
The following table outlines the mechanical properties of grade 310S stainless steel.
|
Properties |
Metric |
Imperial |
|
Tensile strength |
515 MPa |
74695 psi |
|
Yield strength |
205 MPa |
29733 psi |
|
Elastic modulus |
190-210 GPa |
27557-30458 ksi |
|
Poisson’s ratio |
0.27-0.30 |
0.27-0.30 |
|
Elongation |
40% |
40% |
|
Reduction of area |
50% |
50% |
|
Hardness |
95 |
95 |
Thermal Properties
The thermal properties of grade 310S stainless steel are given in the following table.
|
Properties |
Metric |
Imperial |
|
Thermal conductivity (for stainless 310) |
14.2 W/mK |
98.5 BTU in/hr ft².°F |
Other Designations
Other designations equivalent to grade 310S stainless steel are listed in the following table.
|
AMS 5521 |
ASTM A240 |
ASTM A479 |
DIN 1.4845 |
|
AMS 5572 |
ASTM A249 |
ASTM A511 |
QQ S763 |
|
AMS 5577 |
ASTM A276 |
ASTM A554 |
ASME SA240 |
|
AMS 5651 |
ASTM A312 |
ASTM A580 |
ASME SA479 |
|
ASTM A167 |
ASTM A314 |
ASTM A813 |
SAE 30310S |
|
ASTM A213 |
ASTM A473 |
ASTM A814 |
SAE J405 (30310S) |
Alloy 310s stainless steel coiled tube
Liaochengsihe stainless steel material Limited company is a professional manufacturer direct marketing of stainless steel coiled tube stainless steel pipe ,stainless steel condenser stainless steel precision pipe.has two production lines can produce continuous oil pipe, equipment is perfect
▼Commonly Size of stainless steel coiled tube: we can product them as your request.
|
Size of Stainless steel Coil Tube |
||||
|
ITEM |
Grade |
Size |
Pressure |
Length |
|
1 |
316L、304L、304 alloy 625 825 2205 2507 |
1/8″×0.025″ |
3200 |
500-2000 |
|
2 |
316L、304L、304 alloy 625 825 2205 2507 |
1/8″×0.035″ |
3200 |
500-2000 |
|
3 |
316L、304L、304 alloy 625 825 2205 2507 |
1/4″×0.035″ |
2000 |
500-2000 |
|
4 |
316L、304L、304 alloy 625 825 2205 2507 |
1/4″×0.049″ |
2000 |
500-2000 |
|
5 |
316L、304L、304 alloy 625 825 2205 2507 |
3/8″×0.035″ |
1500 |
500-2000 |
|
6 |
316L、304L、304 alloy 625 825 2205 2507 |
3/8″×0.049″ |
1500 |
500-2000 |
|
7 |
316L、304L、304 alloy 625 825 2205 2507 |
1/2″×0.049″ |
1000 |
500-2000 |
|
8 |
316L、304L、304 alloy 625 825 2205 2507 |
1/2″×0.065″ |
1000 |
500-2000 |
|
9 |
316L、304L、304 alloy 625 825 2205 2507 |
φ3mm×0.7mm |
3200 |
500-2000 |
|
10 |
316L、304L、304 alloy 625 825 2205 2507 |
φ3mm×0.9mm |
3200 |
500-2000 |
|
11 |
316L、304L、304 alloy 625 825 2205 2507 |
φ4mm×0.9mm |
3000 |
500-2000 |
|
12 |
316L、304L、304 alloy 625 825 2205 2507 |
φ4mm×1.1mm |
3000 |
500-2000 |
|
13 |
316L、304L、304 alloy 625 825 2205 2507 |
φ6mm×0.9mm |
2000 |
500-2000 |
|
14 |
316L、304L、304 alloy 625 825 2205 2507 |
φ6mm×1.1mm |
2000 |
500-2000 |
|
15 |
316L、304L、304 alloy 625 825 2205 2507 |
φ8mm×1mm |
1800 |
500-2000 |
|
16 |
316L、304L、304 alloy 625 825 2205 2507 |
φ8mm×1.2mm |
1800 |
500-2000 |
|
17 |
316L、304L、304 alloy 625 825 2205 2507 |
φ10mm×1mm |
1500 |
500-2000 |
|
18 |
316L、304L、304 alloy 625 825 2205 2507 |
φ10mm×1.2mm |
1500 |
500-2000 |
|
19 |
316L、304L、304 alloy 625 825 2205 2507 |
φ10mm×2mm |
500 |
500-2000 |
|
20 |
316L、304L、304 alloy 625 825 2205 2507 |
φ12mm×1.5mm |
500 |
500-2000 |
▼Our advantages:
We are a stainless steel coiled tube/pipe manufacturer.
We can control the quality of pipe by ourselves.
The length of the pipes is more than 3500M/Coil.
★Stainless steel coiled tubes /coiled tubing application:
- Food & Beverage Industry
- Petrochemical
- CNG Piping Jobs
- Boilers
- Desalination Plants
- Geothermal Plants
- Heat Exchangers
- Instrumentation Jobs
- Mechanical Jobs
- Oil and Gas Equipments and Piping Works
★Stainless steel coiled tubes /coiled tubing other garde:
l Stainless Steel 304 Coiled Tubes/ Coil Tubing
l Stainless Steel 304L Coiled Tubes/ Coil Tubing
l Stainless Steel 304H Coiled Tubes/ Coil Tubing
l Stainless Steel 316 Coiled Tubes/ Coil Tubing
l Stainless Steel 316L Coiled Tubes/ Coil Tubing
l Stainless Steel 316H Coiled Tubes/ Coil Tubing
l Stainless Steel 317L Coiled Tubes/ Coil Tubing
l Stainless Steel 321 Coiled Tubes/ Coil Tubing
l Stainless Steel 347 Coiled Tubes/ Coil Tubing
l Stainless Steel 410 Coiled Tubes/ Coil Tubing
l Stainless Steel 904L Coiled Tubes/ Coil Tubing
l Stainless Steel 310S Coiled Tubes/ Coil Tubing
l Stainless Steel 310 Coiled Tubes/ Coil Tubing
l Stainless Steel 310H Coiled Tubes/ Coil Tubing
l Stainless Steel 316Ti Coiled Tubes/ Coil Tubing
l Stainless Steel 321H Coiled Tubes/ Coil Tubing
l Stainless Steel 347 Coiled Tubes/ Coil Tubing
l Stainless Steel 347H Coiled Tubes/ Coil Tubing
★Seamless coiled tubing is a no. 1 choice in most of the critical applications as there is no risk of impurities that are often associated with welded coiled tubing.
u Made available in custom lengths
u Improved system safety and reliability
u Greater corrosion resistance
u Reduces the use of fittings, preventing the possibilities of leaks and other long-term failures
u Reduced installation costs – installation involves less time and efforts
We have experience to export stainless steel tube products for more than ten years.
Description: Liaocheng sihe stainless steel material Limited company production of stainless
steel coil has ten years of history, has two production lines can produce continuous welded pipe, equipment is perfect, the technology leader. But the company introduced the world first-class bright annealing technology, can online stainless steel pipe softening treatment. In addition, we also have compressed, flaring, bending test, hardness 100%, stretch, air tightness test and so on, the price is reasonable, quality is reliable, the current US 80% coil export to all over the world.
Product detail pictures:
Related Product Guide:
Harley-Davidson Announces New Low Rider And SuperLow 1200T Models | Astm A312 Stainless Steel Pipe
A sponge-like molecular cage for purification of fullerenes | Astm A312 Stainless Steel Pipe
owing to excellent assistance, a variety of high quality products and solutions, aggressive costs and efficient delivery, we take pleasure in an excellent popularity amongst our customers. We are an energetic business with wide market for Original Factory Stainless Steel Ss304 Food Grade Pipe - BSI 310S24 Stainless steel coil tubing suppliers – Sihe , The product will supply to all over the world, such as: Czech, Myanmar, Liverpool, Our team knows well the market demands in different countries, and is capable of supplying suitable quality products and solutions at the best prices to different markets. Our company has already set up a experienced, creative and responsible team to develop clients with the multi-win principle.
By Kimberley from Russia - 2016.11.01 17:04
The after-sale warranty service is timely and thoughtful, encounter problems can be resolved very quickly, we feel reliable and secure.
By Meroy from Kuala Lumpur - 2015.09.29 13:24
Related products
-
Cheapest Factory Small Size Capillary Tube - A...
Liaocheng sihe stainless steel material limited company is a manufacturer for stainless steel coiled tube ,produces stainless steel coiled tubing including Inconel 625 Tubing are the High Performance Alloy tubing. Alloy 625 Tubing is a material with excellent resistance to pitting, crevice and corrosion cracking. Nickel 625 tubing is highly resistant in a wide range of organic and mineral acids. Good high temperature strength. These tubing are High resistance to oxidation at elevated temperat...
-
2017 New Style 201 202 304 316 310s Stainless S...
ASTM 321 #8 Stainless Steel Sheet & Plate Stainless steel sheet & plate is often referred to as corrosion-resistant steel since it does not stain, corrode or rust as easily as regular carbon steel. Stainless steel sheet & plate is the perfect is the perfect solution for applications that require the metal to have anti-oxidation qualities. Stainless Steel coil products： stainless steel coil tube stainless steel tube coil stainless steel coil tubing stainless steel coil pipe stainl...
-
Ordinary Discount Industry Stainless Steel Tube...
We’ve been convinced that with joint efforts, the enterprise between us will bring us mutual benefits. We are able to assure you product or service quality and aggressive cost for PriceList for Thin Wall 304 Stainless Steel Pipe, We’re seeking forward to receiving your enquiries quickly. We’ve been convinced that with joint efforts, the enterprise between us will bring us mutual benefits. We are able to assure you product or service quality and aggressive cost for 304 Stainl...
-
2017 Good Quality Astm Steel Sheet Plate - OEM...
We usually think and practice corresponding to your change of circumstance, and grow up. We goal at the achievement of a richer mind and body plus the living for OEM Factory for China Welded Stainless Steel Coiled Tubing for Downhole Tools in Oil and Gas, We warmly welcome clients, enterprise associations and pals from all around the earth to get in touch with us and seek out cooperation for mutual added benefits. We usually think and practice corresponding to your change of circumstance, and...
-

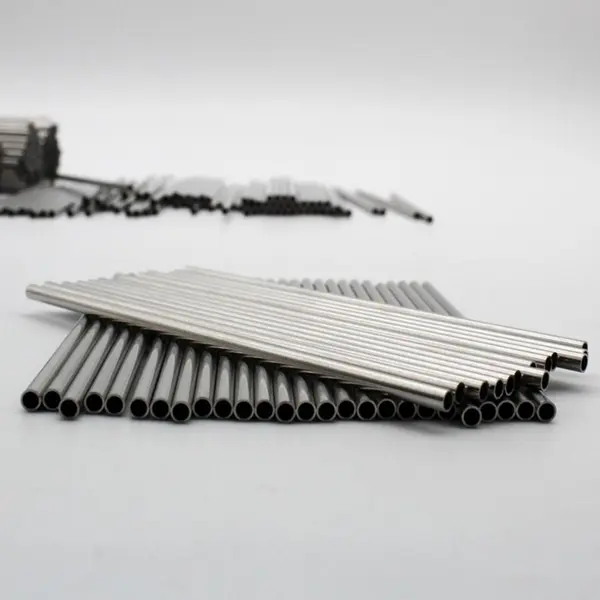

Factory directly Stainless Steel Pipe Company -...
